SEM

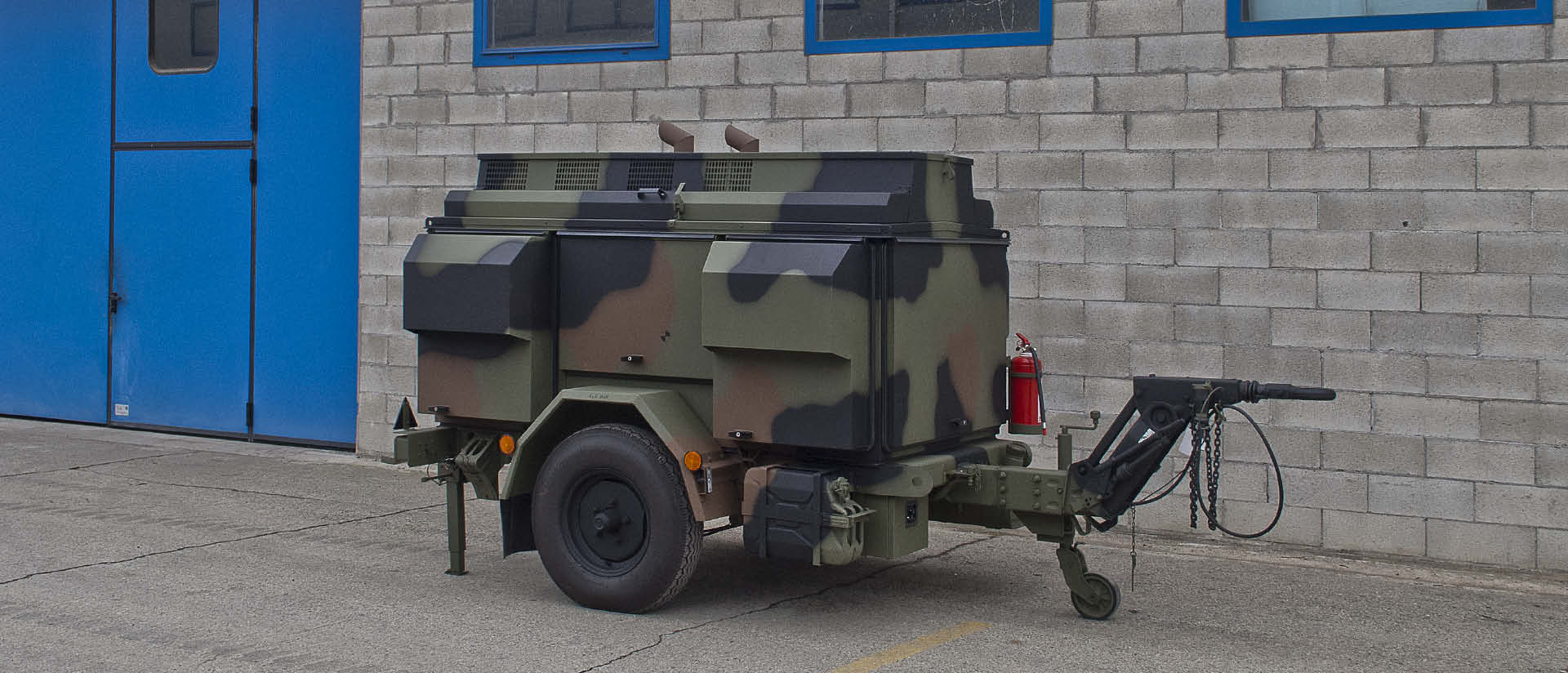

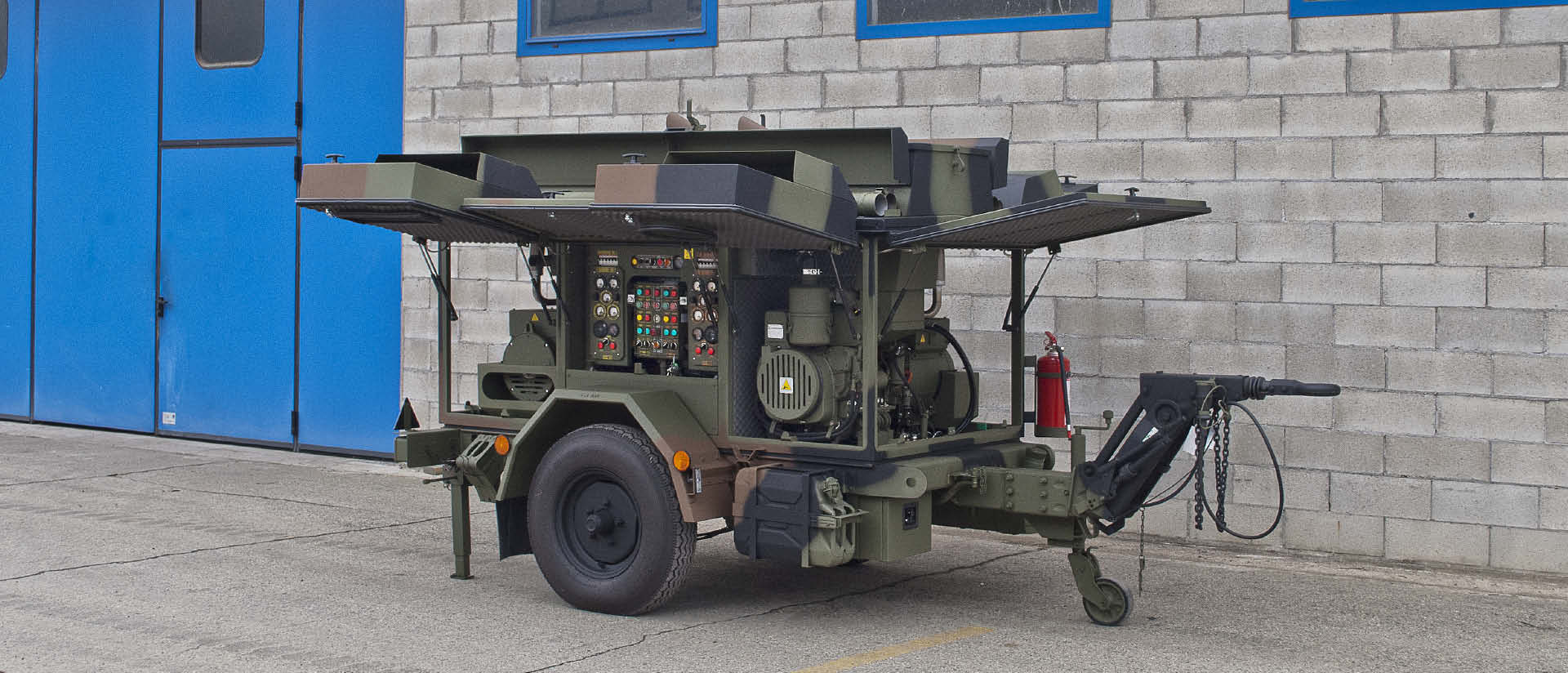

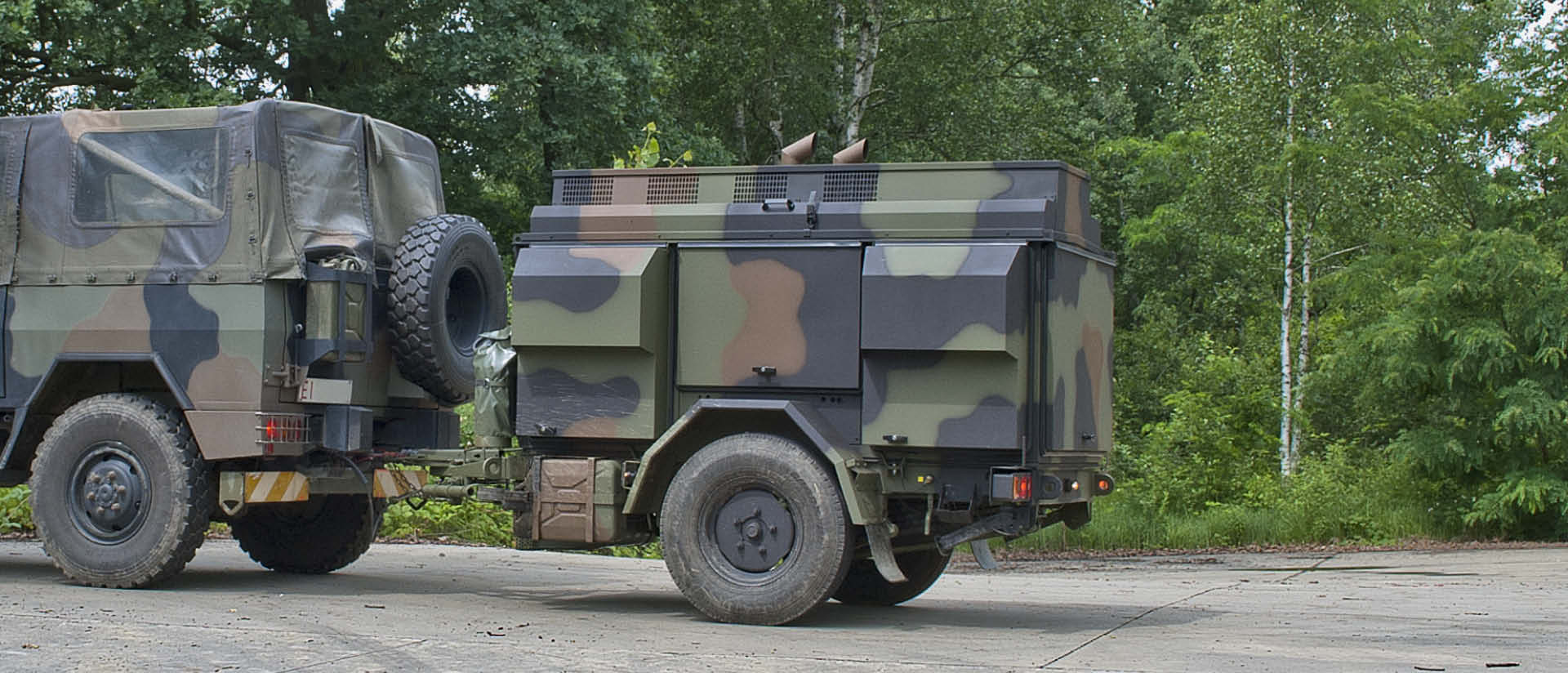

The Generator Sets, NATO homologated, included in the SEM type range, are a mobile system for power supply on a designed single-axle trailer, developed and manufactured for tactical-logistic use, suitable to operate in extreme environmental conditions.
The system is able to supply 220/380 Vca outputs at 50 Hz and 24 Vcc with characteristics of UPS when it is connected to the distribution net and assure the supply continuity, offering 2 indipendent power sources:

  • from 2, 400 V, 50 Hz motogenerators, operating either in parallel or one by one, one reserve to the other,
  • with automatic exchange, between them, with time rate:
  • from distribution net.

Operation capability from -30 °C to +55 °C with max power upto a sea level of 2.000 m.
The available powers varies from 10 to 50 kW according to models.
So far, the following versions have been manufactured:

  • SEM 10 with a power of 10 kW – 230 Vca – 50 Hz NSN 6115-15-100-9910
  • SEM 10/12,5 with a power of 10 kW – 230 Vca – 50 Hz and of 12,5 kW – 400 Vca – 50 Hz NSN 6115-15-198-7374
  • SEM 20/25 with a power of 20 kW – 230 Vca – 50 Hz and of 25 kW – 400 Vca – 50 Hz NSN 6115-15-162-2831
  • SEM 40/50 with a power of 40 kW – 230 Vca – 50 Hz and of 50 kW – 400 Vca – 50 Hz NSN 6115-15-198-7386.
